Suborbital Spaceflights

Soyuz MS-10

Burlak

Russia

Patch Soyuz MS-10 Patch Soyuz MS-10

hi res version (371 KB)

hi res version (576 KB)

Launch, orbit and landing data

Launch date:  11.10.2018
Launch time:  08:40:15.539 UTC
Launch site:  Baikonur
Launch pad:  1
Altitude:  93 km
Inclination:  51,6°
Landing date:  11.10.2018
Landing time:  09:00:04 UTC
Landing site:  47°35´08´´N, 68°00´25´´E

walkout photo

Crew Soyuz MS-10

hi res version (673 KB)

alternate crew photo

alternate crew photo

alternate crew photo

alternate crew photo

alternate crew photo

alternate crew photo

Crew

No.   Surname Given names Position Flight No. Duration
1  Ovchinin  Aleksei Nikolaevich  Commander 2 19m 49s
2  Hague  Tyler Nicklaus "Nick"  Flight Engineer 1 19m 49s

Crew seating arrangement

Launch
1  Ovchinin
2  Hague
3
Landing
1  Ovchinin
2  Hague
3

Backup Crew

No.   Surname Given names Position
1  Kononenko  Oleg Dmitriyevich  Commander
2 Canada  Saint-Jacques  David  Flight Engineer
Crew Soyuz MS-10 backup

hi res version (627 KB)

alternate crew photo

alternate crew photo

Flight

Launch from the Baikonur Cosmodrome. Landung 32 km southeast of Dzhezkazgan

It was intended to transport two members of the ISS Expedition 57 crew to the International Space Station. About 121.57 seconds after liftoff, the craft went into contingency abort due to a sensor failure and had to return to Earth into a "ballistic descent". Both crew members, were recovered alive in good health. The Soyuz MS-10 flight abort was the first instance of a Russian manned booster accident at high altitude in 43 years, since Soyuz 18A similarly failed to make orbit in April 1975

Aleksei Ovchinin and Nicholas Hague had to protect 6.7g forces. Other sources say 8g).

The accident occurred due to an abnormal separation of the first and second stages. One of the [side-mounted boosters] during the separation did not take the right distance and hit the second stage fuel tank, which led to the second stage breaking apart. The reason for that, as the commission found out, was the abnormal work of the sensor that signals the first and second stages of separation.

A press conference was held on November 01, 2018 at the Mission Control Center at TsNIIMash on the results of the work of the State Commission to determine the causes of the emergency situation that occurred on October 11, 2018 during the launch of the Soyuz-FG launch vehicle (Soyuz-FG) with a manned transport ship (Soyuz MS-10).
From the conclusion of the emergency commission, Oleg Skorobogatov told the journalists about the results, "The start ended with a PH accident due to the abnormal separation of one of the side blocks (block "D") that hit the central block (block "A") in the tank fuel, which led to its depressurization and, consequently, to the loss of stabilization of the space rocket".
The reason for abnormal separation is the failure to open the lid of the nozzle cover of the oxidizer tank of the "D" block due to the deformation of the sensor of the separation contact sensor (bending to 6?45') allowed when assembling the "bag" at the Baikonur cosmodrome. The cause of the RN accident is operational in nature and extends to the groundwork collected in the "package" of the Soyuz type PH.
The emergency rescue system of Soyuz MS-10 worked in accordance with the established logic. The crew acted in accordance with the requirements of the on-board instructions and instructions of the Mission Control Center."
For the unconditional implementation of the spacecraft launch plan for the Federal Space Program and the programs of international cooperation of Russia, the Roscosmos State Corporation organized the development of a set of measures to exclude the possibility of an emergency situation repeating and carrying out priority measures for the resumption of launches of the Soyuz-type launch vehicle in November 2018. At the same time, the State Commission approved the launch dates for the International Space Station program: on November 16, 2018, the Soyuz-FG launch vehicle with the Progress MS-10 transport cargo vehicle will be launched, and on December 03, 2018, Soyuz MS-11 will be launched.

Graphics / Photos

Sojus MS Sojus MS
Sojus MS crew in training

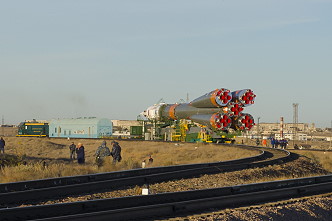

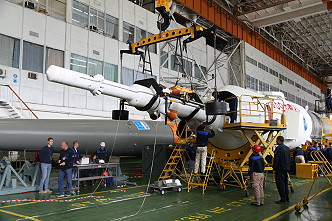

Soyuz MS-10 integration Soyuz MS-10 rollout

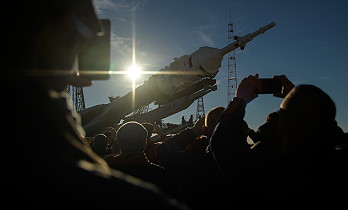

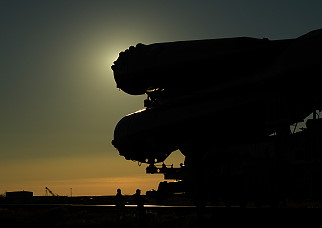

Soyuz MS-10 rollout Soyuz MS-10 erection

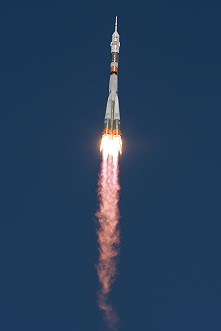

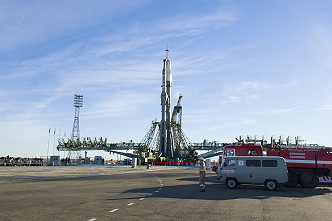

Soyuz MS-10 on the launch pad Soyuz MS-10 launch

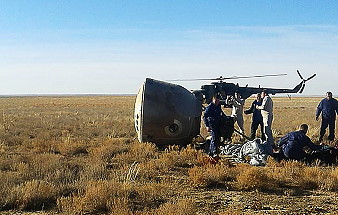

Soyuz MS-10 launch Soyuz MS-10 recovery

©

Last update on November 05, 2018.
